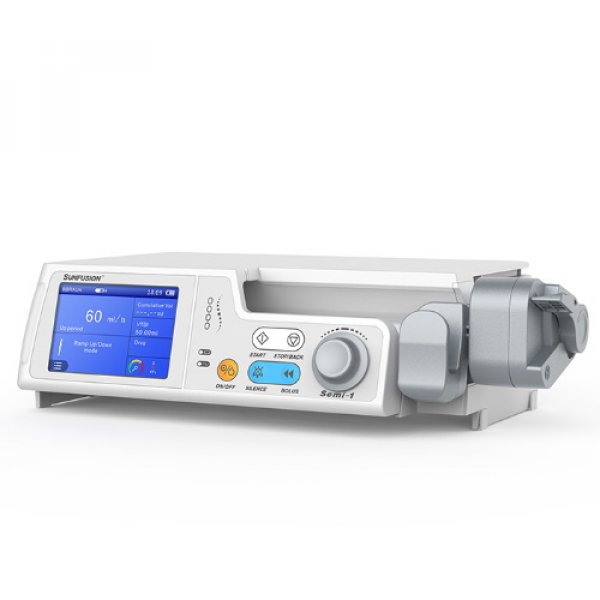

Syringe Pump Sunfusion Semi-1

Syringe Pump Sunfusion Semi-1



A compact syringe pump designed for accurate administration of medicines to the patient. Used together with a disposable syringe

The device's microprocessor controls a stepper motor to create translational thrust through a mechanical transmission device to push the syringe plunger.

The Sunfusion Semi-1 Series Syringe Pump is equipped with a variety of sensors to accurately control real-time injection parameters such as injection speed, volume, etc., making it a highly accurate and intelligent syringe pump. Once properly calibrated, the Semi 1 syringe pump is compatible with all brands of syringes

The device is equipped with various signaling functions, operational information is displayed synchronously on the color TFT touch screen, and the smart interface ensures safe and convenient operation

Features:

Compact and lightweight, portable, convenient design and intuitive user interface
3.5" colorful touchscreen to display various information on one page
Modes of infusion for various clinical cases: by rate (simple mode), volume/time (Vol/T mode), volume/weight (Vol/W mode), sequential mode, micro mode, intermittent mode, Ramp Up/Down mode, TIVA mode, first dose mode
Applicable syringe size: 2ml/3ml, 5ml, 10ml, 20ml, 30ml, 50/60ml
Flow Rate:  0,01 - 2200 ml/h
Bolus, Anti-Bolus, KVO
Occlusion pressure: Level 1-13
Multi-level alarm system
8 hours backup time at the rate of 5ml/h for a fully charged battery
IP classification: ІР24
System self-test is conducted every time turning on
The housing is easily disinfected
System of voice and visual prompts
Dimensions: 301mm（L）×183mm（W）×82mm（H); Net weight: Approx. 2.0 kg

Manufacturer: Hunan Beyond Medical Technology Co.,Ltd (P.R. China)
